Carre 19
The Carre 19 profile is specially designed to form a perfect 90° corner with the Simple 19 textile frame. Ideal for creating L-, U- and O-shaped configurations with a professional, frameless look.
Available from stock
Wall profile for corner setups
The Carre 19 is the ideal solution for creating corner setups on the wall. Thanks to its smart design, textile prints align perfectly, resulting in a clean, frameless finish. Its low weight also makes it easy to mount on thin walls, such as in shop interiors or exhibition stands.
Only 19 mm deep
With a depth of just 19 mm, you can create striking 3D configurations visible from multiple angles. The Carre 19 is developed as a cost-effective solution for professional use in retail, interior design and exhibition applications. Looking for an illuminated version? Choose the Carre 60 profile.
Perfect combination with the Simple 19 profile
The Carre 19 is used as a corner component and connects seamlessly with the Simple 19 profile. Together they offer a stylish and functional solution for wall-mounted corner configurations. L-, U- and O-shaped designs can be created quickly and precisely.

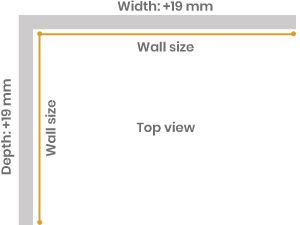

L-shaped wall setup
An L-shaped formation allows you to go around a corner with a textile frame. It consists of two Simple 19 frames connected by one vertical Carre profile. Please note: ensure the frame is ordered 19 mm wider than the wall dimension for a precise fit.

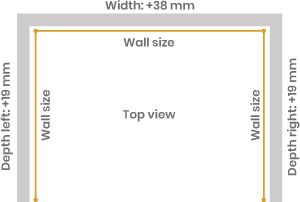

U-shaped wall setup
A U-shaped formation allows you to extend a textile frame across multiple corners. This configuration consists of three Simple 19 frames connected by two vertical Carre 19 profiles. Please note: the two outer frames should be ordered 19 mm wider than the wall measurements, and the middle frame should be 38 mm wider than the distance between the corners.

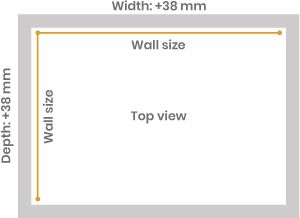

O-shaped wall setup
An O-setup allows you to create an impressive banner around, for example, a column. It consists of four Simple 19 frames connected by four vertical Carre profiles. Please note: the frame should be ordered 38 mm wider than the wall dimensions to ensure a perfect fit.
Quick installation
The Carre 19 is lightweight and easy to mount. It can be fixed directly to the wall by drilling every 40 cm. To simplify installation, the frame can also be supplied with pre-drilled holes, called punch holes. This makes the pre-drilled frame quicker to install.
Available in any colour
The Carre 19 comes standard in mill finish, commonly known as untreated aluminium. This profile is not visible in the frame. The Simple 19, the visible part of the frame, comes standard in silver, white and black. Do you prefer a different colour? Please enter your desired RAL colour code, and we will powder-coat the profile in the colour of your choice.
| Item number | NF-05192 & NF-04190 (silver), NF-21190 (black), NF-56190 (white), NF-04190PH (pre-drilled, silver), NF-21190PH (pre-drilled, black) or NF-56190PH (pre-drilled, white) |
|---|---|
| Depth | 19 mm |
| Frame type | 3D textile frame |
| Mounting | Wall-mounted |
| Suitable profiles | Simple 19 |
| Colours | Silver, Black (RAL9005), White (RAL9016), Mill finish, RAL colour of your choice |
| Diameter punch holes | 5 mm |
| Possible configuration | L-configuration, O-configuration, U-configuration |
| Pre-drilled | Yes |
| Open / closed finish | Closed |
| Weight | 0.701 kilos/metre (Carre 19) and 0.318 kilos/metre (Simple 19) |
| Stabilizers possible | No |
| Bar length | 6150 mm |
| Acoustic material | Therm Acoustic 10 mm |
